Voice AI Architecture 2026: Sub-500ms Speech-to-Speech Latency Guide

Q: What is the actual sub-500ms latency budget for a voice agent in 2026, and how is it spent?

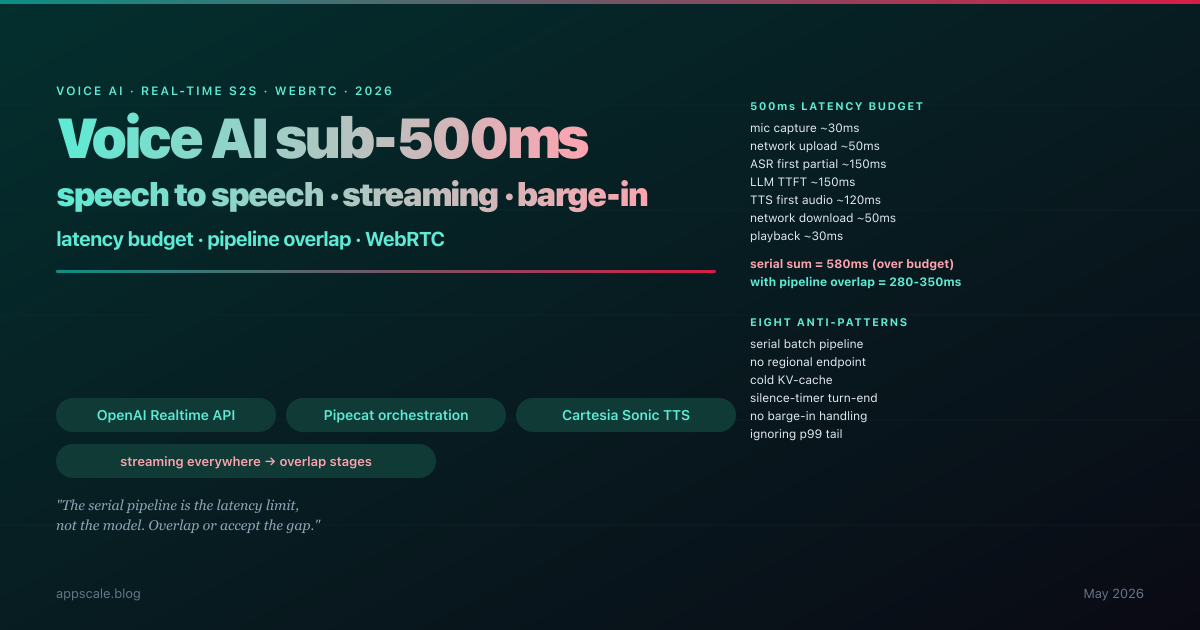

The end-to-end target measured from the user’s last audio frame to the first audio frame of the agent’s reply is 500ms p50 and 800ms to 1.2s p99 for a comfortable conversational experience. The seven-stage budget at 2026 numbers is approximately: microphone capture and frame batching 20 to 40ms, network upload 30 to 80ms with a regional endpoint, streaming ASR first partial transcript 100 to 200ms, LLM first-token TTFT 100 to 250ms with a warm KV-cache and a small prompt, streaming TTS first audio 80 to 200ms, network download 30 to 80ms, speaker playback 20 to 40ms. The linear sum at the middle of each range is approximately 580ms which is over budget; the architectural lever that brings the perceived latency under 500ms is pipeline overlap, where downstream stages start processing on the first chunks from upstream stages rather than waiting for upstream completion. With aggressive overlap the perceived first-audio latency collapses to roughly 280 to 350ms, which is firmly inside the conversational comfort zone. The mistake teams make is treating the budget as a linear sum and optimising each stage in isolation; the optimisation that matters is the overlap discipline, and stages that do not overlap (capture, transport, playback) are fixed by the platform and not where engineering effort moves the needle.

Q: Why can a serial pipeline (batch ASR plus chat-completion LLM plus offline TTS) never hit the sub-500ms target, and what is the architectural fix?

The serial pipeline records audio until silence is detected, sends the WAV to a batch ASR endpoint, waits for the full transcript, sends the transcript to a chat-completion LLM endpoint, waits for the full completion, sends the completion to a TTS endpoint, waits for the full WAV, plays the WAV. The perceived latency is the linear sum of the worst-case latency of each stage, which at 2026 numbers lands at 2.5 to 4 seconds for a typical pilot. The architectural fix is not faster models; it is streaming at every stage with pipeline overlap. Streaming ASR emits partial transcripts within 100 to 200ms of speech onset; the LLM can start prefilling on the partial transcript before turn-end is detected; the LLM streams tokens as it generates; the TTS starts synthesising on the first LLM tokens and emits audio chunks rather than full WAVs; the audio starts playing on the first TTS chunk. The wall-clock stages overlap, and the perceived latency collapses to the longest single-stage gap rather than the sum. Bolting a faster model onto the serial architecture moves the median down by 200 to 400ms but never crosses the conversational comfort threshold because the architecture is the limit, not the model.

Q: When should I use OpenAI Realtime or Gemini Live (integrated speech-to-speech) versus a modular ASR plus LLM plus TTS pipeline?

Integrated S2S collapses the ASR, LLM, and TTS into a single multimodal endpoint that operates on audio embeddings natively; reported p50 latency on warm sessions with regional endpoints is 200 to 350ms, below the conversational comfort threshold without aggressive pipeline engineering. The trade-offs are honest. Integrated S2S does not produce an intermediate transcript that you can log, redact, route, or audit, which is a deal-breaker for regulated workloads such as healthcare, financial advice, or compliance-recorded calls. Integrated S2S exposes a single voice and a limited tuning surface, so deep prompt customisation, tool-calling layers, voice cloning, or domain-tuned ASR are not supported in the same way as the modular pipeline. The pricing on audio tokens works out to 4x to 10x the equivalent text-token cost of the modular pipeline at 2026 prices, so long sessions or high concurrency see meaningful cost differences. The failure surface is opaque; when the modular pipeline fails you can identify which stage failed and route around it, while integrated S2S fails as a single endpoint and recovery falls back to the modular pipeline anyway. The decision rule: use integrated S2S as the default for conversational copilots where the transcript is not the artefact and the cost is acceptable; use the modular pipeline for transcript observability, deep customisation, regulatory recording, or cost optimisation at scale. Most production architectures in 2026 ship both and route by use-case rather than picking one for the whole workload.

Q: What is the role of Pipecat and LiveKit Agents, and do I need an orchestration framework or can I build the pipeline directly?

Pipecat (open-source, by Daily) and LiveKit Agents (open-source, by LiveKit) are the two production-grade orchestration frameworks for voice AI in 2026. They wire ASR, LLM, TTS, VAD, transport, and tool-calling into a streaming graph with backpressure, cancellation on barge-in, partial-transcript-to-LLM handoff, tool-call interleaving, and mid-turn updates handled correctly. Building the orchestration from scratch is a six-month engineering project because the surface area is large: the backpressure between stages with different throughput characteristics, the cancellation contract when barge-in fires (cancel LLM generation, stop TTS synthesis, flush audio buffer, all within roughly 100ms), the partial-transcript handoff where the LLM starts prefilling on partials but discards the prefill if the final transcript diverges, the tool-call interleaving where function execution happens mid-turn without blocking the audio pipeline, the recording and observability hooks, and the transport adapters for WebRTC and WebSocket and telephony. Adopting Pipecat or LiveKit Agents collapses this to roughly one week of integration work, and the differentiating engineering effort moves to prompts, tool design, and eval, which is where the team’s judgement actually adds value. The framework choice between the two is largely transport-driven: Pipecat is transport-agnostic and supports Daily, LiveKit, WebSocket, and telephony backends; LiveKit Agents is deeply integrated with the LiveKit WebRTC stack and is the right choice if you are already running LiveKit for the transport layer. Building from scratch is justified only when you have very specific requirements that neither framework supports, which is rare.

Q: How do I implement barge-in correctly, and why is it the most common voice-AI bug in production?

Barge-in is the user interrupting the agent’s response; the user expects to be able to start speaking and have the agent stop within roughly 200ms. The implementation has two pieces. The first is a voice-activity detector (VAD) that runs continuously on the inbound audio stream and emits a "user is speaking" signal within 50 to 100ms of speech onset; Silero VAD is the open-source default that ships in Pipecat and LiveKit Agents, runs at sub-10ms latency per 20ms audio frame, and is under 2MB so it runs anywhere. The second is the cancellation contract: when the VAD fires during agent response, the orchestrator must cancel the in-flight LLM generation (calling the LLM’s cancel or abort API rather than waiting for it to finish), stop the in-flight TTS synthesis (closing the streaming connection rather than letting it complete), and flush the audio playback buffer (so the user does not hear 300 to 800ms of stale agent audio after they have started speaking). The bug in most production voice agents is that one of these three cancellation steps is missed; the most common failure is that the audio buffer is not flushed and the user hears the agent continuing to speak after they have started, which is the single largest contributor to "this voice agent feels broken" reports. The frameworks (Pipecat, LiveKit Agents) implement the full contract correctly; custom pipelines almost always miss at least one step. The eval metric for barge-in latency (user-speech-start to agent-audio-stop) is the production signal that detects the bug, and the target is sub-200ms with anything above 400ms perceived as the agent talking over the user.

Q: What is the right way to detect turn-end, and why is the 800ms silence timer the most common source of "the agent feels slow"?

Turn-end detection is the agent’s decision that the user has finished speaking and the agent should respond. The naive implementation waits for a fixed silence interval (commonly 800ms) before firing turn-end, which adds 800ms to the perceived response latency for every turn and is the single largest source of "the agent feels slow" complaints in production voice agents. The 2026 production pattern is a learned turn-end predictor (LiveKit Agents ships one, Pipecat exposes hooks for custom predictors) that uses prosodic features (intonation, falling pitch, sentence-final lengthening) and partial-transcript completeness (does the transcript so far form a complete utterance) to predict turn-end within 100 to 300ms of speech offset rather than waiting for the silence timer. The accuracy trade-off is that learned predictors occasionally cut the user off mid-utterance (false positive turn-end), and the calibration is workload-specific: a customer-support agent where the user is reading off an account number tolerates longer silence than a casual conversational agent where rapid back-and-forth is the norm. The hybrid pattern that ships in production is a learned predictor with a silence-timer fallback: the predictor fires turn-end when its confidence is high, and the silence timer fires only when the predictor has not fired within a longer interval (1.2 to 1.5s); this gives the responsive feel of the learned predictor with the safety net of the silence timer for the cases where the user pauses mid-utterance.

Q: Which streaming TTS provider should I use in 2026, and what is the actual first-audio latency I can expect?

The 2026 streaming TTS landscape has four production-grade options with different latency-quality-cost trade-offs. Cartesia Sonic (and Sonic-2) targets sub-100ms first-audio with a state-space-model architecture that streams natively rather than chunking offline; this is the leading option for latency-critical workloads in 2026 and the voice quality is competitive with the offline-batch generation of 2024. ElevenLabs Flash v2.5 targets sub-150ms first-audio with voice cloning and multi-lingual support; the trade-off versus the higher-quality ElevenLabs Multilingual models is a small quality reduction that is imperceptible in conversational audio but visible in long-form narration; this is the right choice when voice cloning or specific brand voices matter. OpenAI TTS streaming (the gpt-4o-tts variants) sits in the 200 to 300ms first-audio range with the integration advantage of running inside the same OpenAI account as the LLM, which simplifies billing, SDK, and observability; the voice catalog is smaller than ElevenLabs but the quality is high. Deepgram Aura is the cost-optimised option at 150 to 250ms first-audio with a smaller voice library; for high-volume workloads where per-character TTS cost dominates this is worth evaluating. The first-audio metric is what matters for perceived latency; the total TTS duration is irrelevant because the user starts hearing the response as soon as the first audio frame plays. Open-source options (Coqui XTTS, OpenVoice) are viable for cost-sensitive or on-premises workloads but require significantly more engineering to hit production latency targets.

Q: WebRTC vs WebSocket for voice AI transport: which should I use, and what about telephony integration?

WebRTC is the default 2026 transport for browser-and-mobile voice agents for three reasons. The first is built-in jitter buffering: the WebRTC stack handles packet loss, jitter, and clock-skew with battle-tested algorithms; rolling your own over WebSocket means rebuilding two decades of real-time audio engineering. The second is the Opus codec with forward error correction: WebRTC tolerates 10 to 30 percent packet loss without audible artefacts, which is the difference between a usable mobile experience and an unusable one. The third is bidirectional native streaming: WebRTC handles simultaneous upload-and-download cleanly, which is the precondition for barge-in and overlapping pipeline stages. WebSocket is the right choice for server-to-server voice pipelines, debug tooling, low-volume internal copilots, and platforms without first-class WebRTC support; the trade-off is that jitter and packet-loss handling falls to the application layer, which is a meaningful engineering surface that most teams under-estimate. Pipecat and LiveKit Agents both support WebSocket as a transport option and absorb most of the engineering burden. Telephony (voice agents that take or place PSTN calls) is the third transport class with its own architecture: integrate via Twilio Media Streams, Telnyx Media Streaming, Vonage Voice API, or Plivo equivalents; the inbound stream is 8kHz mu-law audio that has to be upsampled before ASR, the outbound stream has to be downsampled and mu-law-encoded after TTS, and the per-minute carrier pricing dominates the cost profile rather than the LLM tokens. The architectural pattern is to put a thin telephony adapter in front of the same Pipecat or LiveKit Agents orchestration that serves WebRTC; the upstream voice pipeline is shared and only the transport differs.

Q: How do I evaluate a voice agent, and which metrics actually predict production user satisfaction?

Voice AI eval is broader than text LLM eval because user perception depends on temporal characteristics that aggregate-accuracy metrics do not capture. Five metrics matter. Word error rate (WER) on the ASR stage measured on a domain-relevant transcription set, not on LibriSpeech; the gap between benchmark WER and production WER is often 5 to 15 percentage points and the domain-specific number is the one that predicts production accuracy. End-to-end latency p50 and p99 measured from user-speech-end to agent-audio-start; p99 is the tail-latency metric that decides whether the experience feels consistent or whether one in a hundred interactions is broken; target 500ms p50 and 800ms to 1.2s p99. Barge-in latency measured from user-speech-start (during agent response) to agent-audio-stop; target sub-200ms, with anything above 400ms perceived as the agent talking over the user. Turn-taking smoothness measured as the gap between user-speech-end and agent-speech-start; the conversational comfort range is 150 to 600ms, and the goal is consistency rather than minimisation (a 200ms agent response in one turn and a 1.5s response in the next is perceived as broken even though the median is healthy). Faithfulness and helpfulness of the LLM response measured with Ragas, DeepEval, TruLens, or LangSmith eval; voice does not change the requirement that the model’s answers have to be grounded and correct. The voice-specific anti-pattern is measuring everything in batch and ignoring the temporal dimension; a voice agent that scores 95 percent on a batch eval but feels broken in live use is failing on latency, barge-in, or turn-taking metrics that the batch eval does not capture, and instrumenting the live system to measure these continuously is the only way to detect and fix them.
